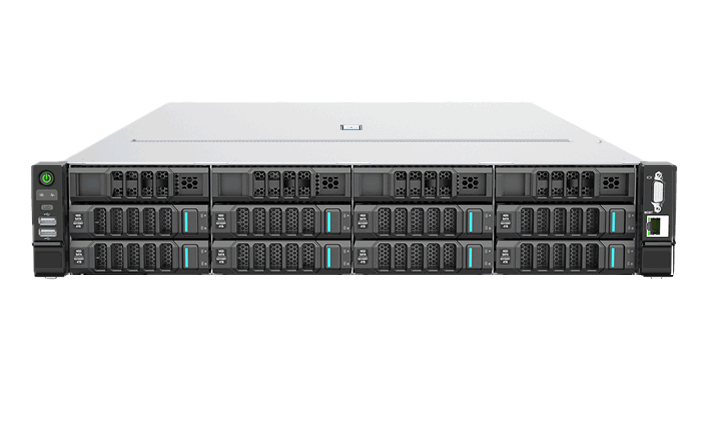

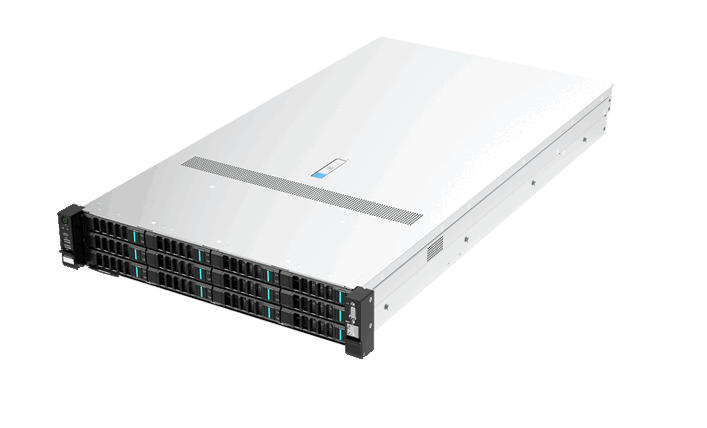

CH- R7260 X5 Server
The R7260 X5 server supports up to two cpus for up to a 52% improvement in processor floating-point performance and a 42% increase in the number of cores, combined with 8-channel 3200MT/s DDR4 memory technology to provide users with up to a 60% increase in bandwidth. Flexible scalability with support for 17 PCIe slots and up to 45 hard disk slots. 96% power efficiency and a standard operating temperature design of 5 ° C to 45 ° C provide users with higher energy efficiency returns.
Product
consult.png)
.png)
.png)
-
Integration of open ecology
For the future of Intelligent dataOpen Ecological Design based on OCSP specification
Server Management based on Open BMC -
Flexible and elastic configuration
Meet expansion requirementsUp to 32 memory slots
Up to 45 hard disk slots
Up to 17 PCIe slots -
Modular installation and deployment
Easy and fast maintenanceModular design easy maintenance
Fast disassembly, core parts hot swap
- Application scenario
.jpg)
- Data Center
- Virtualization
Cloud computing
.jpg)
- High Performance Computing
- Data analysis
Scientific research
.jpg)
- Confined Space
- Virtualization
Private cloud
.jpg)
- Low Latency
- Financial applications
Trading systems
- Technical specification
| Name | Specifications |
| Processor | Supports up to 2 cpus, each with up to 40 cores, maximum power 270W |
| Chipset | C621A |
| Memory | Support up to 32 DDR4 memory slots, maximum speed 3200MT/s, support RDIMM or LRDIMM |
| Storage controller | Optional high-performance RAID controller, supporting RAID0/1/10/5/6/50/60 |
| Storage extension | Supports up to 45 hard drives Supports up to 20 3.5-inch hard drives (12 front, 4 internal, 4 rear) Supports up to 45 2.5-inch hard drives (25 front, 10 internal, 10 rear) supports up to 28 NVMe U.2 hard drives (24 front, 4 rear) 4-block rear) Optional SATA/NVMe* M.2 Options |
| PCIe expansion | Up to 17 PCIe expansion slots Up to 15 standard PCIe expansion slots (10 rear + 5 middle), up to 6 x16 slots Up to 2 OCP 3.0 slots |
| GPU support | Support up to 4 double-width GPU cards (single card power consumption up to 450W) |
| Management Software | Integrated BMC management chip, supporting IPMI2.0, Redfish, SOL, KVM, virtual media and other functions |
| Network | One Gbps dedicated management network port on board Two OCP3.0 network adapters Optional Network adapters based on standard PCIe slots |
| I/O interface | Standard RJ45 management network port, 1 rear VGA port, 4 USB ports (2 front, 2 rear) Optional expansion card supports 2 rear USB ports, 1 USB Type-C management port, 1 RJ45 management network port Left mounting ear: Two USB 2.0 ports, optional two USB 3.0 ports Right mounting ear: Optional smart mounting ear supports one VGA, one management network port, or one Type-C management port |
| Security | Support chassis intrusion detection; Support PFR3.0 and SGX2.0 security technology; Support TCM/TPM security module |
| Power supply | Optional 550 w / 800 w / 1300 w / 1600 w / 2000 w / 2600 w / 2700 w / 3200 w CRPS standard power, support of 1 + 1 redundancy |
| Operating temperature | 5 ° C ~ 45 ° C (The operating temperature is affected by different configurations, please refer to the product technical documentation for details) |
| Appearance/Chassis size | 2U standard chassis 87mm(H)*447.4mm(W)*800mm(D) (without safety panel) |
